Flagship Triple Vision. Full Digital Clarity.
Multi-Angle, Ultra Low-Power Parking Monitoring
Grab the Highlights
4K+4K+3K
Dual Sony STARVIS 2 IMX678 &
Triple HDR
AI Portrait
& IR Interior Camera
24/7 3CH Parking Monitoring
NightVIS 2.0 with AI ISP
4G Connectivity
3CH Remote Control
Remote Two-way Voice Call
Instant Alerts
Cabincare
5GHz Wi-Fi High-Speed Transfer
Supercapacitor
D²save 2.0 Dual Storage

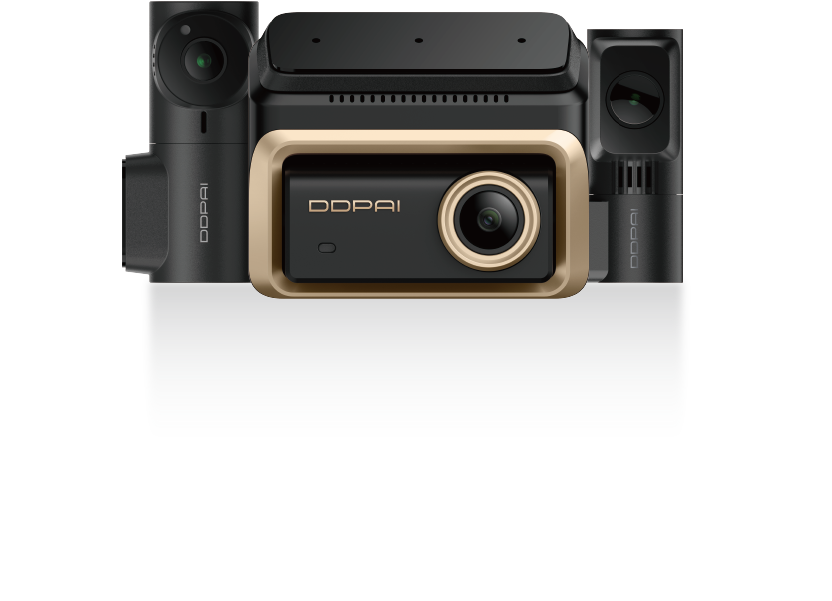

Ultimate 3-Channel Imaging

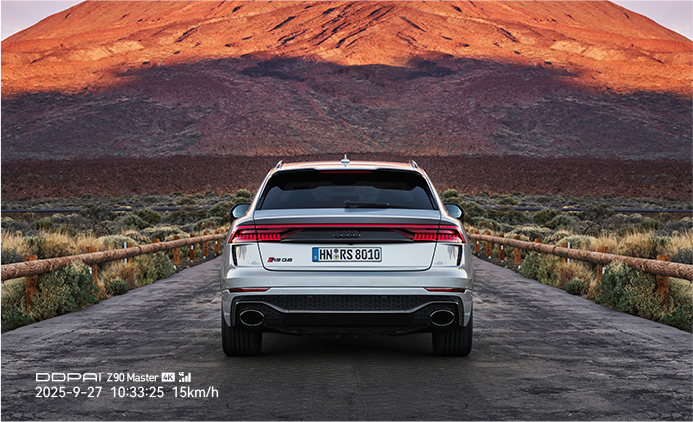

4K + 4K + 3K, Full Digital Clarity
Z90 Master pioneers the industry with a 4K front, 4K rear, and 3K cabin triple-camera system,
delivering full digital recording across all channels with next-level clarity.
Front 4K 30fps / 3K 60fps (optional)
Rear 4K 30fps
Cabin 3K 30fps

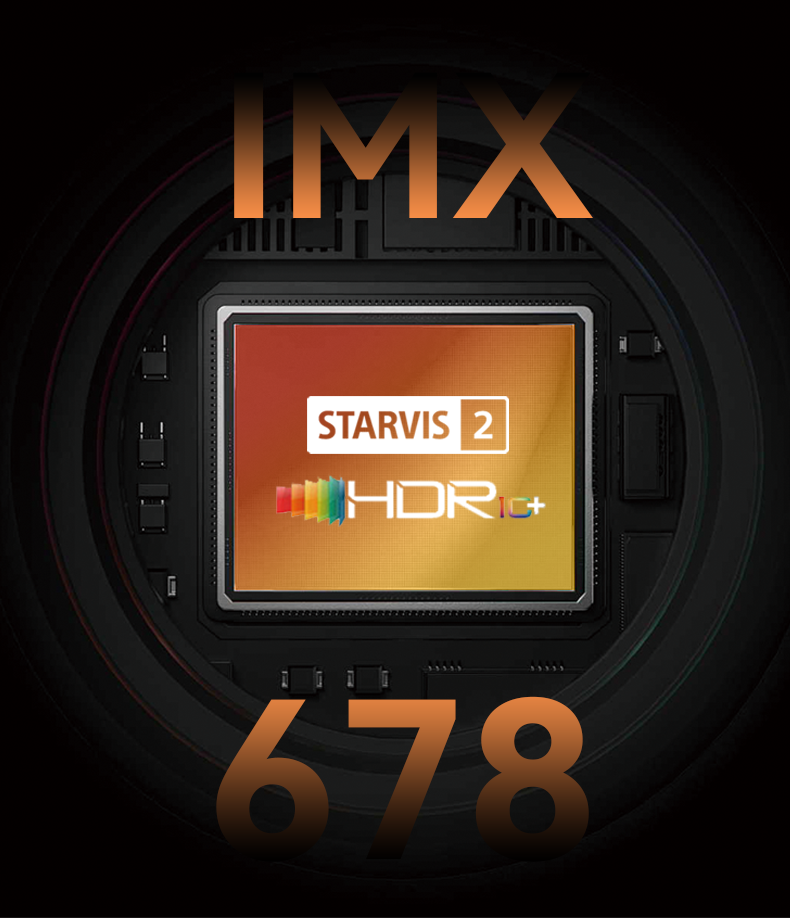

Dual Sony IMX678 & Triple HDR
Dual SONY STARVIS 2 IMX678 sensors for front and rear camears and triple HDR with RealCube
tuning keep every channel sharp and balanced day or night, every detail stays clear.
No Glare, Just Clarity

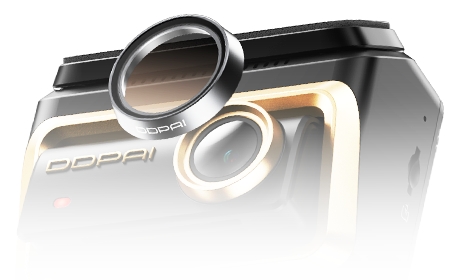

[01] CPL Filter
Reduces reflections and glare from glass, metal, and other shiny surfaces, enhancing overall footage quality.
[02] Smart Exposure Control
No more glare—adjust exposure in real time via the app’s live preview, keeping plates and road signs clear when it matters most.
Redefining Cabin Footage
AI-Enhanced Portraits
while AI tuning keeps skin tones natural and lighting comfortable—perfect for
creators or capturing everyday moments.

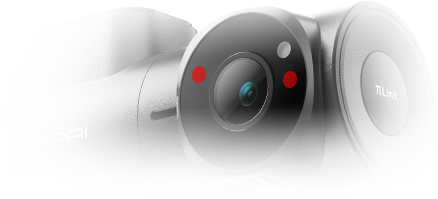

Clear Infrared Vision
Dual infrared lights switch on in low light, keeping the entire cabin visible,
even the back seats. Choose infrared or infrared Full-color mode via the DDPAI app.
Your 360° Remote Sentinel

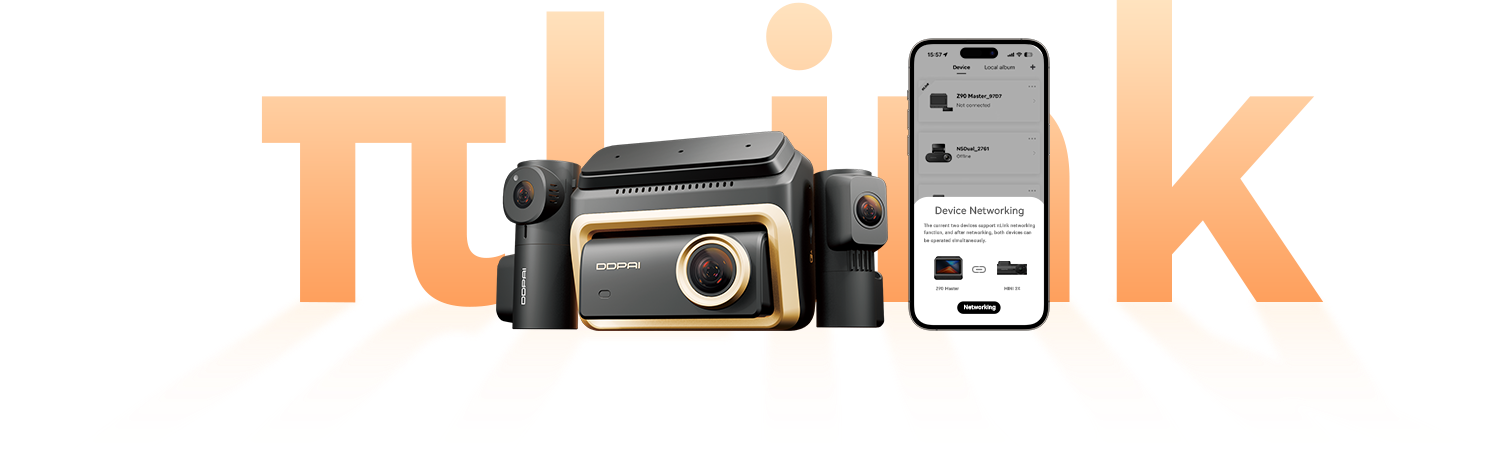

πLink Expansion, All-round Protection
and can be upgraded to a 3-channel setup by adding a 3K camera MlNl3X, Once connected,
the devices automatically sync, allowing you to manage and view multiple angles
simultaneously through the DDPAl app.
4G Always-On Protection
Remote Control &Cloud Backup
Remotely wake, view, and capture snapshots while tracking the vehicle via the DDPAl app. Emergency clips and snapshots are automatically uploaded to the cloud for secure viewing and download.
Instant Alerts &Boundaries Secured
Real-time alerts with time, location, and footage for unusual events—plus geofencing that notifies you when the vehicle enters or leaves preset zones.
CabinCare AI Monitoring
Smart interior snapshots detect left-behind children, pets, or open windows—sending instant notifications for peace of mind.
Remote Two-way Voice Call
Talk directly with people in the car via the internal speaker and microphone in the dashcam.
*Full 4G functionality requires a separate purchase of the “4G Module” and “Intelligent Hardwire Kit.”
24/7 Parking Monitoring
Even when you’re away, the Z90 Master keeps watch on the front, rear,
and interior—capturing any suspicious activity clearly and in detail.
*Requires Intelligent Hardwire Kit.
[1]
Time-Lapse Recording
Mode
Continuously records at 5 frames per second, providing smooth, detailed footage that saves storage while capturing all the details during long parking periods.
[2]
Collision Detection Mode
Automatically triggers high-definition recording upon detecting any impact, capturing critical moments with precision to safeguard your vehicle even when unattended.
[3]

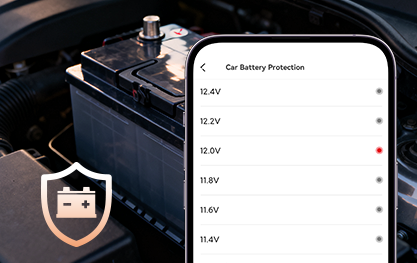

IPS Power Management
Z90 Master keeps an eye on your car’s battery 24/7. With 6 levels of IPS Power Management, it prevents power drain and allows you to automatically power off the system when low voltage is detected.
Worry-Free Recording

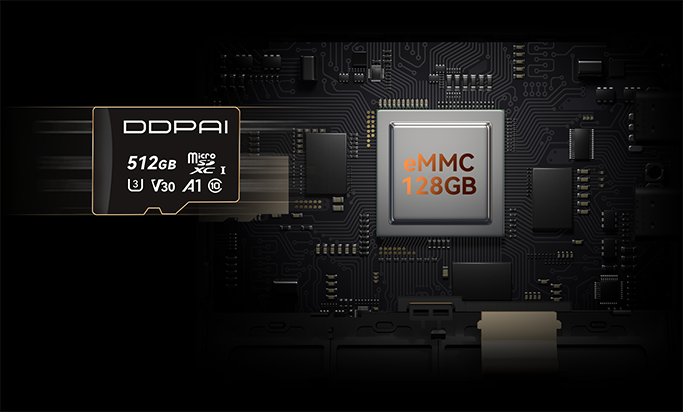

D²save 2.0 Dual-Storage Protection
Relying solely on an SD card for storage is risky and unstable. DDPAl’s D²save 2.0 ensures your footage is always safe.
lf the microSD card fails, recording instantly switches to internal storage. With 128GB built-in eMMC storage
and support for up to 512GB microSD expansion, the Z90 Master gives you all the space you need.
128GBeMMC
3.5h
128GBeMMC+64GBMircoSD
5.25h
128GBeMMC+128GBMircoSD
7h
128GBeMMC+256GBMircoSD
10.5h
128GBeMMC+512GBMircoSD
17.5h
*Data from DDPAI Lab.
Seamless Experience
Smart Voice Control
Say ‘Take Photo’ to easily capture moments. Automatically saves a 10-second video,
including 5 seconds before and 5 seconds after the snapshot, perfect for
recording your journey. (Take Photo)

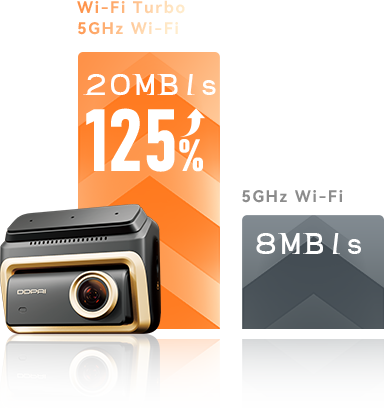

Share in Seconds
with Wi-Fi Turbo
Powered by Wi-Fi Turbo and BLE Quick Pairing, Z90 Master connects instantly and transfers videos in seconds—making preview, playback, download, and sharing faster than ever.
*Data fromDDPAI Lab
Reliable Protection
Supercapacitor
Provides short-term power for error-free recording in case of power loss.
Engineered to withstand extreme heat and cold, the supercapacitor ensures safer,
more reliable performance on every journey.
No risk of ignition
better thermal resistance
Long life cycle

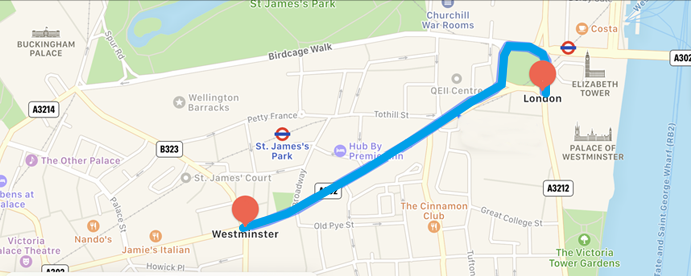

Built-in GPS & ADAS 2.0
Access detailed tracking data like driving time, speed, location,
and routes with ease using the DDPAl app.
Driver Fatigue
Alert
Forward Vehicle
Start Alert
Explore the lineup
Front: 3840 x 2160@30fps
3840 x 2160@25fps|
2880 x 1620@60fps
Rear: 3840 x 2160@25fps
Cabin: 2880 x 1620@30fps
Front: 3840 x 2160@30fps
2880 x 1620@60fps
Rear: 2560 x 1440@30fps
Cabin: 2880 x 1620@30fps
Front: 3840 x 2160@30fps
Rear: 2560 x 1440@30fps
Cabin: 2880 x 1620@30fps
Front: Sony STARVIS 2 IMX678 1/1.8″ 8MP
Rear: Sony STARVIS 2 IMX678 1/1.8″ 8
Front: Sony STARVIS 2 IMX678 1/1.8″ 8MP
/
Front: Sony STARVIS 2 IMX678 1/1.8″ 8MP
Rear: Sony STARVIS 2 IMX678 1/1.8″ 8
Front: Sony STARVIS 2 IMX678 1/1.8″ 8MP
/
| | | ||
|---|---|---|---|---|
| New | Z90 Master | Z90 Pro | Z90 | |
| General | ||||
| Product Dimension | 83.0*67.5*46.3 mm (3.27*2.66*1.82 in) | |||
| Weight | 204.5g (7.220oz) | |||
| Display Screen | 3 inch | |||
| Display Screen Resolution | 640 x 360 | |||
| Camera | ||||
| Video Resolution | Front: 3840 x 2160@30fps 3840 x 2160@25fps 2880 x 1620@60fps Rear: 3840 x 2160@25fps Cabin: 2880 x 1620@30fps | Front: 3840 x 2160@30fps 2880 x 1620@60fps Rear: 2560 x 1440@30fps Cabin: 2880 x 1620@30fps | Front: 3840 x 2160@30fps Rear: 2560 x 1440@30fps Cabin: 2880 x 1620@30fps | |
| Image Sensor | Front: Sony STARVIS 2 IMX678 1/1.8" 8MP Rear: Sony STARVIS 2 IMX678 1/1.8" 8 | Front: Sony STARVIS 2 IMX678 1/1.8" 8MP | / | |
| HDR | Triple HDR | |||

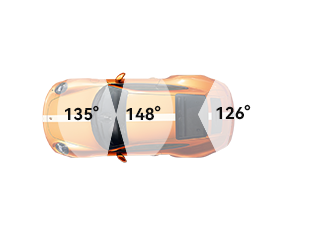

| Field of View | Front: 135° Rear: 126° Cabin: 148° | Front: 135° Rear: 126° Cabin: 148° | Front: 143° Rear: 126° Cabin: 148° | |
| Aperture | Front: F1.75 Rear: F1.7 Cabin: F1.5 | Front: F1.75 Rear: F2.0 Cabin: F1.5 | Front: F1.75 Rear: F2.0 Cabin: F1.5 | |
| Video Format | MP4 | |||
| IMU | 3-axis G-sensor | |||
| Features | ||||
| Voice Control | Support | |||
| APP Control | Support | |||
| IR Interior Camera | Support | |||
| Wi-Fi & Bluetooth | 5GHz Wi-Fi & BLE5.1 | |||
| Supercapacitor | Yes | |||
| GNSS | GPS, BDS, GLONASS, GALILEO, QZSS | |||
| Others | ||||
| Microphone | Yes | |||
| Speaker | Yes | |||
| Operation Temperature | -20 °C ~ 70 °C (-4 °F ~ 158 °F) | |||
| Storage Temperature | -40°C ~ 85°C (-40 °F ~ 185 °F) | |||
| Power Interface | USB Type-C | |||
What's In The Box
Front Camera
Rear Cam
Pry Tool
Car Charger
CPL Filter
3.5m Power Cable
6m Rear
Camera Extension Cable
User Guide
3M Adhesive
Electrostatic Sticker
Front Camera
Rear Cam
Pry Tool
Car Charger
3.5m Power Cable
6m Rear
Camera Extension Cable
User Guide
3M Adhesive
Electrostatic Sticker
Front Camera
Rear Cam
Pry Tool
Car Charger
3.5m Power Cable
6m Rear
Camera Extension Cable
User Guide
3M Adhesive
Electrostatic Sticker
Add-ons
Intelligent Hardwire Kit
πLink Connection
MINI3X
1-to-2 Adapter Cable
0.3m Power Cable
πlink Exclusive Car Charger
Installation Guide Card
4G Module
4G Cloud Box
Intelligent Hardwire Kit
SIM Card Ejector Pin
SIM Card Tray
SIM Card
User Guide
(Free SIM card available in selected regions only.Please check availability or contact customer service before purchase.)
