Product Introduction
Appearance
Note: The following images are for reference only. Please refer to the actual product.

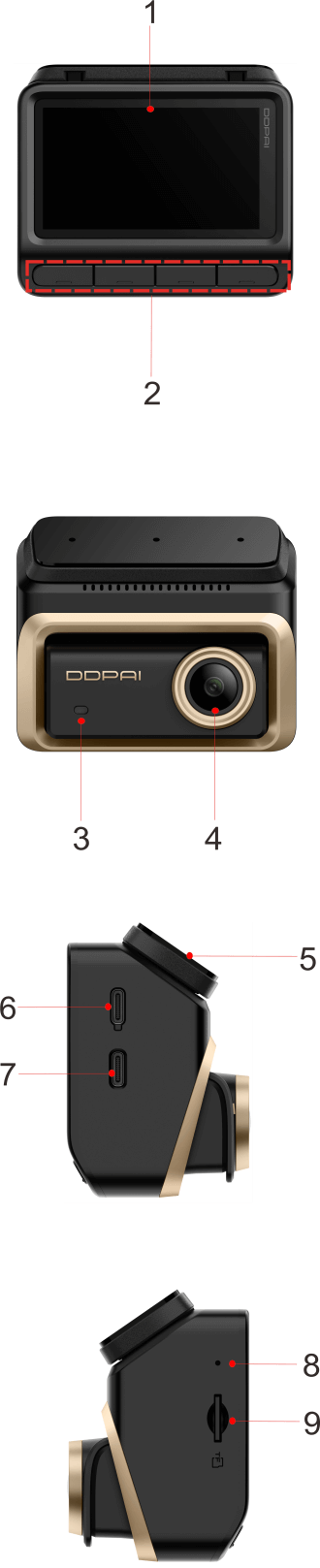

No. | Component |
1 | Display (Non-touchscreen) |
2 | Function Buttons |
3 | Indicator |
4 | Lens |
5 | 3M Adhesive Bracket (Removable) |
6 | USB Type-C Port (For D-Cam) |
7 | USB Type-C Port(Power) |
8 | MIC |
9 | Micro-SD Card Slot |
Function Buttons
Reset: Hold the reset button for 6 seconds.
Indicator Guide
| Indicator | System Status |
| Off | Recording/Parking Monitoring (Sleep mode) |
| Breathing Red | Parking Monitoring (Time-lapse mode/normal recording) |
Specifications
Watch Video 02:03
Installation Instructions
Memory Card Installation
Install the Memory Card

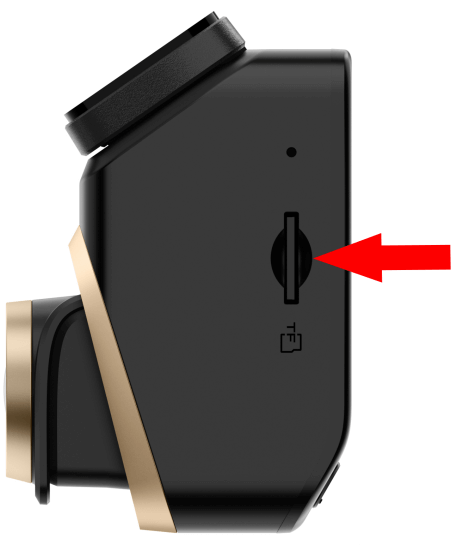

Please make sure the Dash Cam is not powered on first. Insert the memory card half way in (refer to the silkscreen printed pattern beside the memory card slot) and use the finger nail or a paper clip to push the card all the way inward until it clicks and locks in place.
Note: The following images are for reference only. Please refer to the actual product.
Remove the Memory Card
To remove the memory card, gently push its edge inward until it clicks and pops out, and then simply pull it out of the slot.
Notes:
- Please purchase a memory card separately and make sure to usea branded Micro-SD card with capacity of up to 512GB.
- Before first time use, please format the memory card to prevent any errors and for smooth operation.
- Do not remove the memorycard while the Dash Cam is turned on.
Dash Cam Installation
The wiring and power-taking installation method of the Dash Cam include the following three types. You can scan the QR code below for reference.
- Cigarette Lighter Power Supply
Insert the car charger into the cigarette lighter, and connect the car charger and the Dash Cam through the power cord. Most of the power cord will be embedded in the plastic guard plate of the car, and a small part will be exposed in the car. This wiring method is simple and easy to operate.
Step 1: Wipe the front windshield
Wipe the front windshield with a clean soft cloth to ensure that the bracket can stick firmly.
Step 2: Power on the Dash Cam
After inserting the car charger into the cigarette lighter, connect the Dash Cam to the car charger using the included Type-C power cord.
After the car starts, the Dash Cam will automatically start when it is powered on, and the start-up prompt tone “Hello, DDPAI” will be issued, and the Dash Cam will start recording at this time.
Step 3: Determine the installation position of the Dash Cam and adjust the lens angle
① Please refer to Chapter 3 App Connection to connect the Dash Cam to your mobile phone. Then launch the app, enter the preview interface of the DDPAI app, tap “Device Settings” > “ADAS intelligent assistance reminder” > “Adjust ADAS installation position”.
② Select “Go to live preview”>“Enter live preview”to enter the calibration interface. Then you will see the on-screen instructions to assist with installation, according which the installation position of the dash cam is located.
③ After completing the installation, tap “Calibration completed”.
Step 4: Stabilize the Dash Cam
① After determining the installation position of the Dash Cam, attach the electrostatic sticker to the installation position.
② Peel off the film of the 3M sticker on the bracket, and stick the bracket to the center of the electrostatic sticker.
Note：
Please pay attention to the direction and position when attaching the 3M sticker which is a disposable item. Please confirm that the recording angle of the Dash Cam is correct before attaching.
Step 5: Wiring
As shown in the following figure, please place the power cord from the cigarette lighter receptacle to the fixed position of the Dash Cam, and hide the power cord in the plastic guard plate of the car by using the crowbar.
Note:
The cigarette lighter receptacle might be positioned differently in your car. The figure above is provided for reference only.
- Connect the Fuse Box (Intelligent Hardwire Kit is Required)
This wiring method ensures neatness and beauty in the car, and enables parking monitoring function at the same time. However, the wiring process is complicated. To avoid vehicle damage due to improper operation, please have the installation completed at a professional automobile service shop.
Note:
The intelligent hardwire kit needs to be purchased separately or by purchasing a package including the step-down cable.
- Connect the OBD Interface (OBD Power Cable is Required)
This wiring method is easy for operation and can also realize the parking monitoring function.
Step 1: Plug the Type-C connector of the OBD power cable into the Type-C port of the Dash Cam.
Step 2: Connect the other end of the OBD power cable to the OBD port of the vehicle.
Notes:
- The OBD power cable needs to be purchased separately or by purchasing a package including theOBD power cable.
- The location of the OBD interface is different in different models. The above figureis for reference only.
Connect the Rear Camera (Optional)
Step 1: Clean the rear windshield (the approximate installation position of the rear camera Is shown in the figure below).

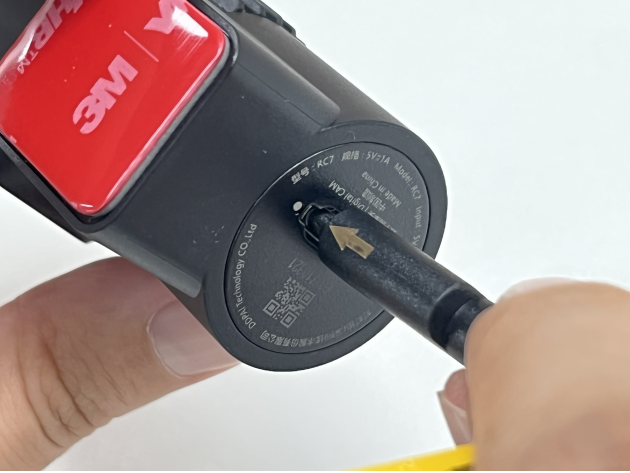

Step 2: Align the straight end with the bump (The arrow on the cable points to the dot) and insert completely.
Step 3: When the device is off, align the angled end with the “D-CAM” port’s bump and insert completely.
Note:
Please make sure that the power cable is fully plugged into the jack.
Step 4: Route the rear power cable from the Dash Cam to the rear camera, cable routing is shown in the figure above.
Step 5: Remove the red backing film of the adhesive sticker, and adjust the field of view of the rear camera, then fix the rear camera to the inner wall of the rear windshield.
Note:
Make sure the lens is facing the rear windshield.
